GPS placement
GPS placementEdit

From $1

    Table of contents
    No headers

    The GPS needs a good sky view.   Puck antennas are generally weather proof, but their thin, tasty cables are
    prone to destruction by rodents.  One approach is to place the GPS on the underside of the lid of a larger
    plastic box which might contain the SG in its pelican case and a battery.

    For example:



    Was this page helpful?
    Yes No
    Tags: (Edit tags)
    • No tags
    Attach file or image
    Files (2)
    FileSizeDateAttached by

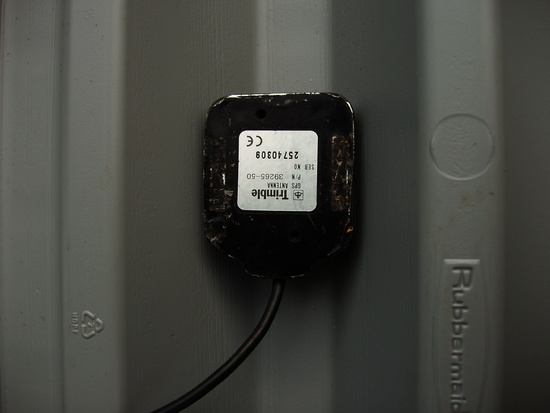

    the labelled side of the puck antenna should point toiward the ground
    		1128.68 kB14:32, 3 May 2016adminActions

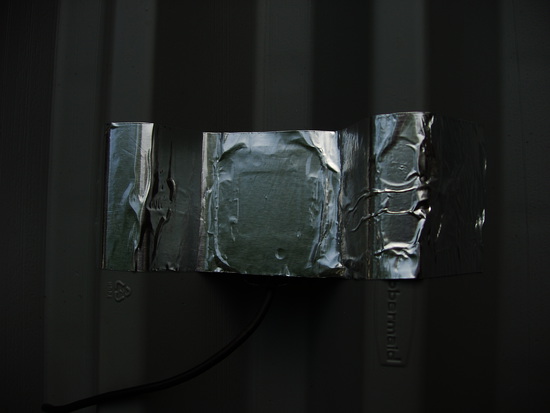

    foil tape on the ground-facing side of the puck antenna can attach it to the lid and help with reception
    		1162.56 kB14:33, 3 May 2016adminActions
