Installing drivers for the SensorGnome on your computer

Installing drivers for the SensorGnome on your computerEdit

Download the Driver

Follow Step 2 of this page:

http://beagleboard.org/getting-started

Most recent computers will need the 64-bit drivers, but the 32-bit ones might work instead.

Continue with the instructions for Windows or Mac.

Note (June 2016): the latest software image lets you connect via ethernet cable, which does not need drivers.

Windows Driver Installation (See note below for Windows 8.1 and 10)

If you have a 64-bit version of windows, double-click on BONE_D64.exe and click through all the boxes with the default settings.
Otherwise, or if this doesn't work, double-click on BONE_DRV.exe and click through all boxes with the default settings.  You might need to unplug and replug your SensorGnome before the new drivers become active.

Notes:

• if Windows pops up a dialog saying it is looking for driver files on the Windows Update site, cancel that process.
• Windows might try to install drivers for each different SensorGnome to which you connect.  This is not required and can safely be cancelled.

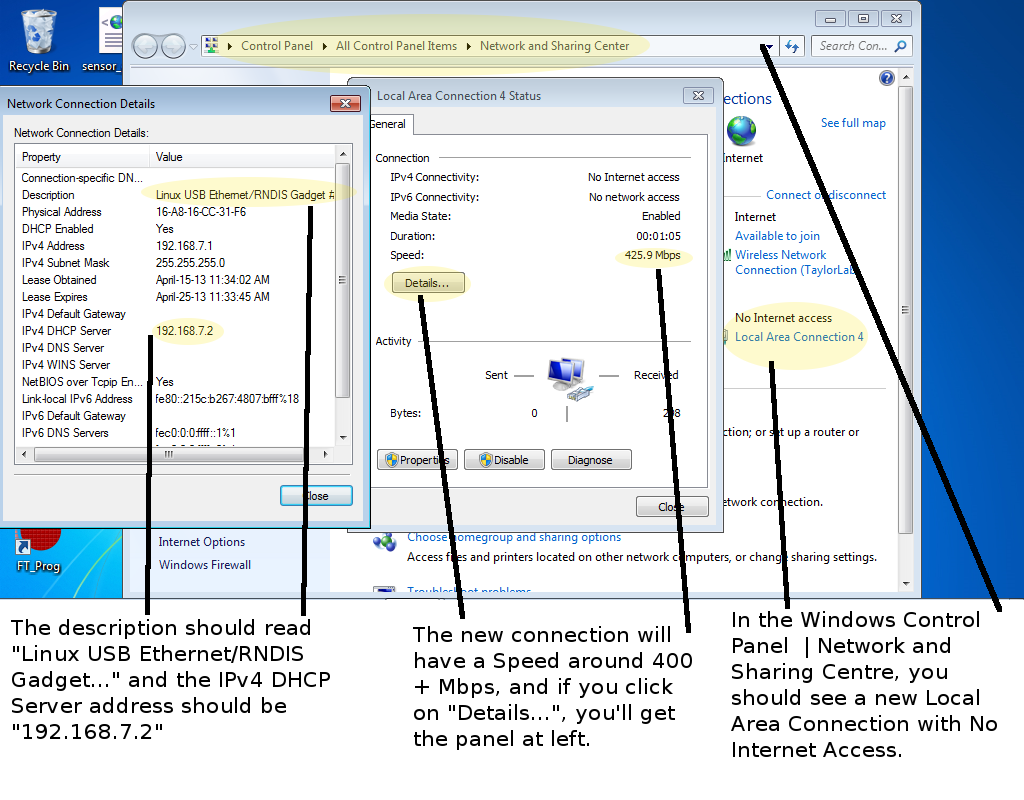

You can confirm that your SensorGnome is live and recognized by Windows by visiting the Network and Sharing Centre (you might be able to get there by clicking on the wireless connection icon in your windows menu bar).  Verify that there is a new Local Area Connection icon with details as highlighted in this screenshot:

*Windows 10

Beaglebone drivers are currently unsigned, and so users of Win 10 need to temporarily disable the banning of unsigned drivers; e.g. instructions here:

   http://windowsreport.com/driver-signature-enforcement-windows-10/

*Windows 8.1

Because of security features in Windows 8.1 the drivers attached will not install if the computer is booted in the usual way.  However, there is a very simple work around (you just need to disable the requirement for drivers to be electronically signed; credit https://learn.sparkfun.com/tutorials...e-on-windows-8):

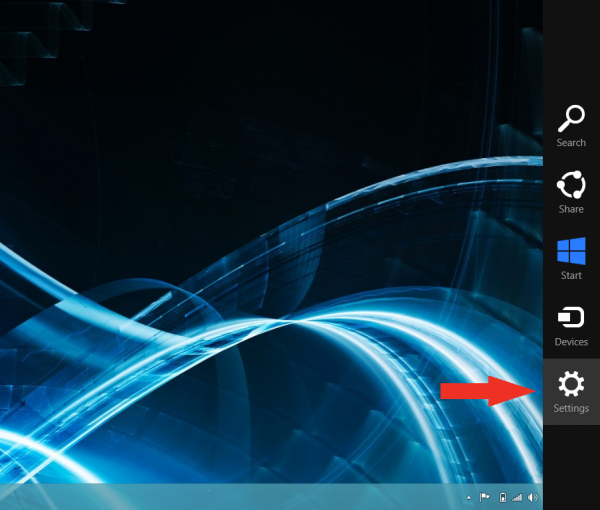

1. Hold down the Windows key on your keyboard and press the letter C to open the Charm menu, then click the gear icon (Settings).

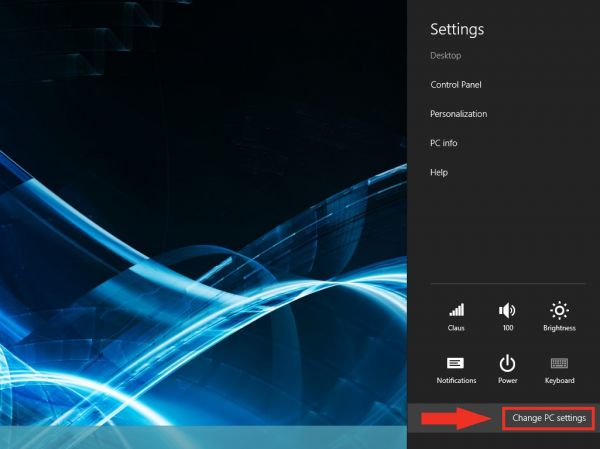

2. Click More PC Settings.

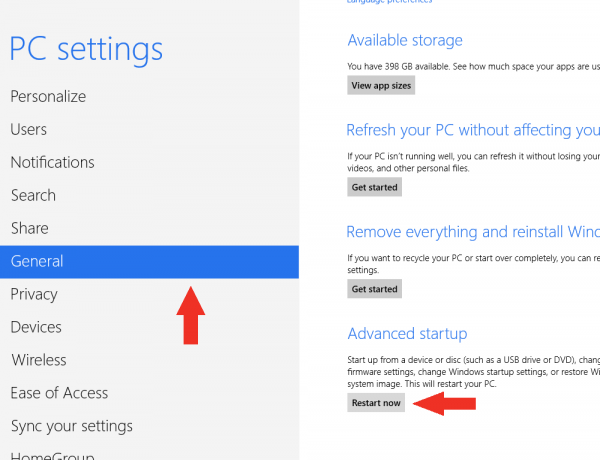

3. Click General.

4. Under Advanced Startup, click Restart Now.



   NOTE: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting -> Update & Recovery -> Recovery.’

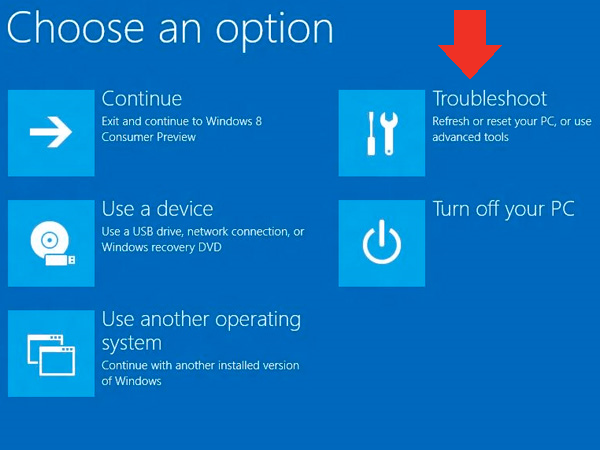

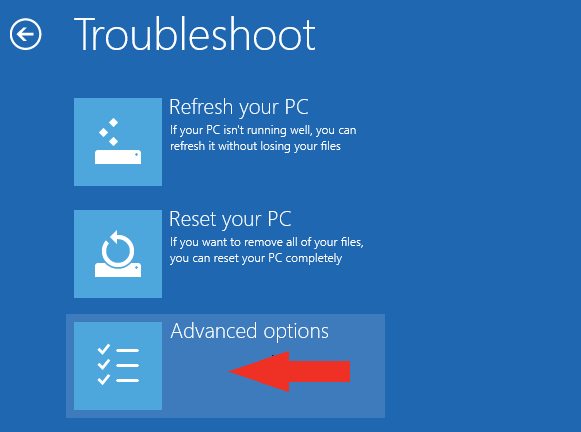

5. After restarting, click Troubleshoot.

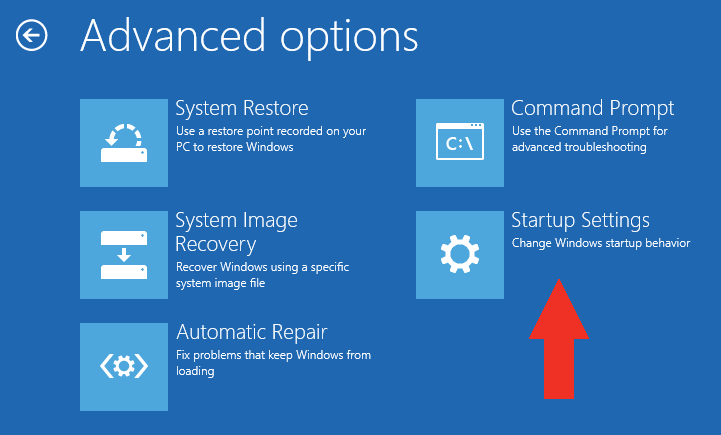

6. Click Advanced Options.

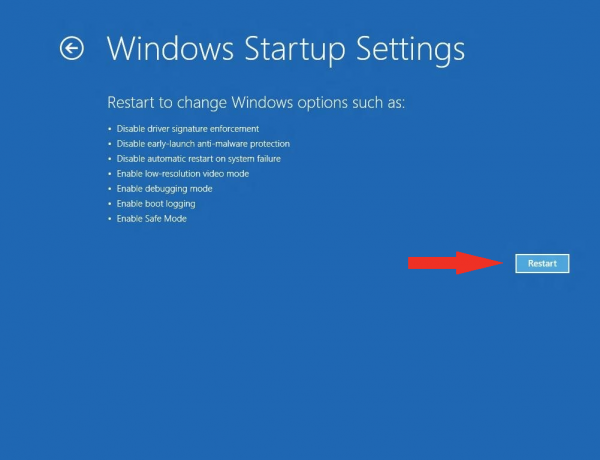

7. Click Windows Startup Settings.



8. Click Restart.

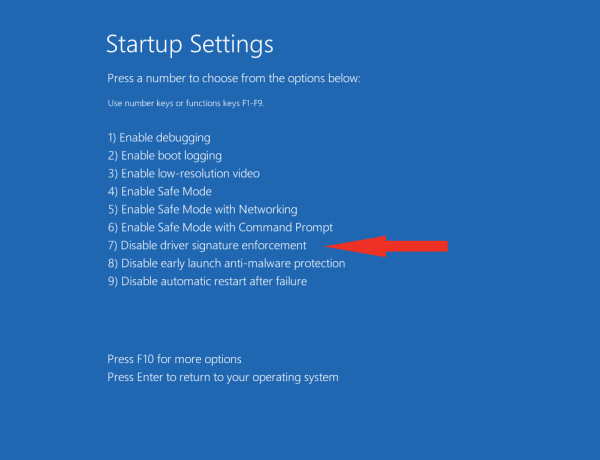

9. After restarting your computer a second time, choose Disable driver signature enforcement from the list by typing the number 7 on your keyboard.



   Your computer will restart automatically.

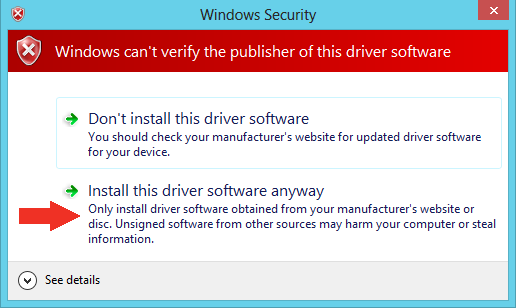

10. After restarting, you will be able to install the Arduino drivers normally; however, Windows will display a warning message. When the warning appears, click Install this driver software anyway.



Note: The next time you restart your computer, driver signature enforcement will be in effect again.

Mac Driver Installation

I just went through this with a volunteer, so I don't have any screen shots, but it was quite simple.  After extracting the files from the zipped Mac Drivers folder, double click on the FTDI_SER.dmg file.  This opens an installer with 2 options, one will work and one won't work (like the 64-bit vs regular Windows versions).  When we installed it password was required; this was not something associated with the driver, but rather the settings on her personal computer.  After this we were able to connect to the Web Interface.

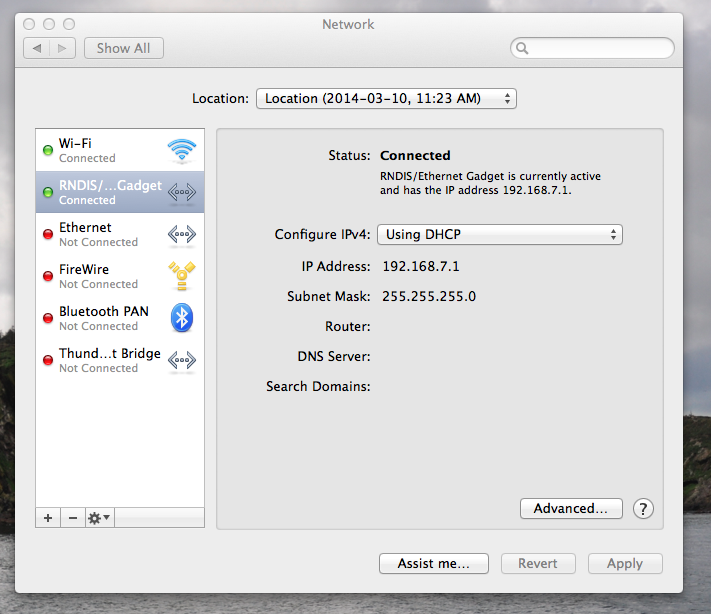

You can confirm that your SensorGnome is live and recognized by your Mac by visiting "Network Preferences" (you might be able to get there by clicking on the wireless connection icon in your windows menu bar).
