Sensorgnome Serial Number

Sensorgnome Serial NumberEdit

Getting the Serial Number from a Dataset

Tag detection datasets have the serial number of the receiver in the field 'recv'.; e.g. SG-5113BBBK2400

Reading the Serial Number from Raw Data Filenames

The serial number is embedded in the name of every raw data file recorded by a Sensorgnome,
as shown in blue for this example:

   TWI-5113BBBK2400-000043-2014-06-21T12-12-57.8940T-all.txt.gz

It is separated by hyphens from the site code (green) and the boot count (red).

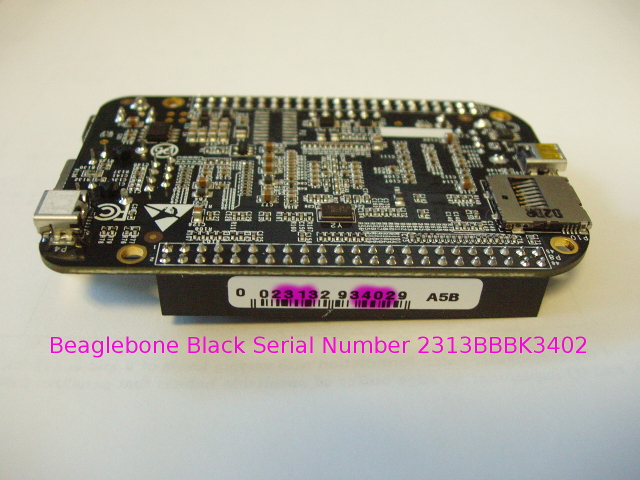

Finding the Serial Number on a Beaglebone Black

The serial number is a 12 digit string like this:

     2313BBBK3402

The highlighted digits are visible on a barcode label stuck to the side of the long black plastic P8 connector.

For the above serial number, the bar code label reads:

    0 023132934029  A5B

The BBBK represents the model (beaglebone Black).  The A5B string is a model revision code.

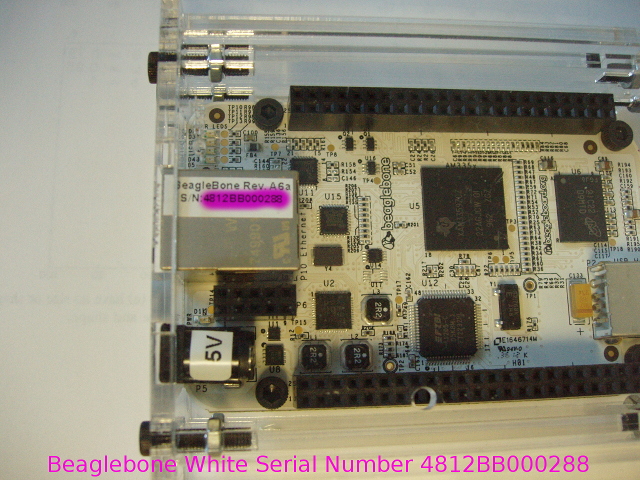

Finding the Serial Number on a Beaglebone White

The serial number is a 12 digit string like this:

    4812BB000288

and is printed directly on a label attached to the shiny ethernet connector box next to the +5 V power jack.

The label also has a revision code (A6a).  The BB00 represents the model number (beaglebone white).
